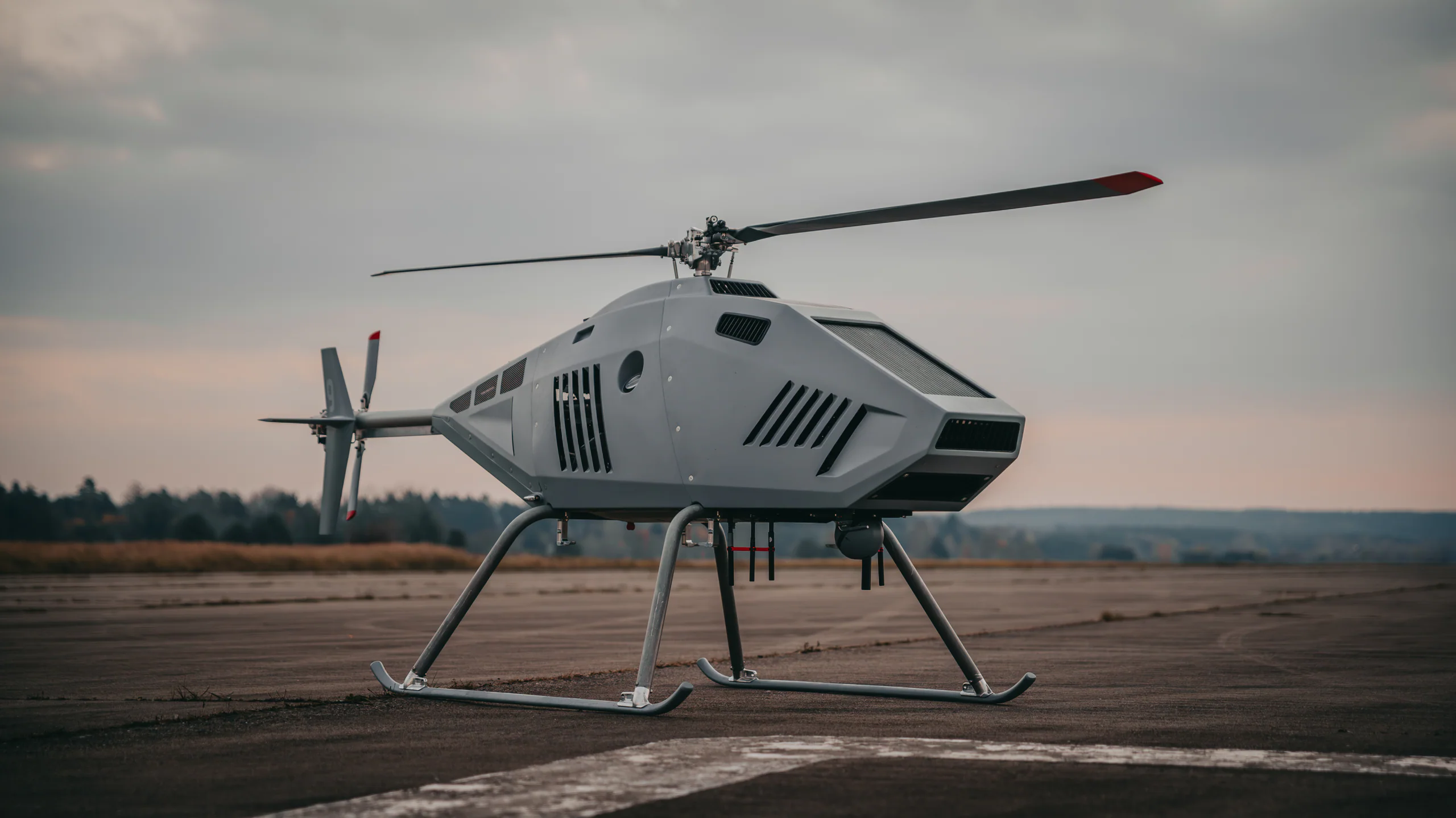

Skyspotter 152. Flight parameters you can rely on.

Primary parameters

MTOW200 kg CONTROL RANGE100 km MAX ALTITUDE ABOVE SEA2 000 m AMSL ENDURANCEup to 4 h

Mission planning considers fuel, payload and the aircraft configuration together. The quoted maximum values are not additive; weight, balance and achievable endurance must be confirmed for each configuration.

Flight characteristics

Vertical take-off & landing, hover
Tactical take OFF - take OFF from 10 × 10 m area
Autonomous take-off, flight & landing
Powers energy-intensive payloads

Load capacityconfiguration-dependentThe transport configuration carries up to 40 kg of cargo. Sensor payload capacity is determined by the installed equipment and fuel.Parameter detail →Range of controlup to 100 kmA control range of up to 100 km supports missions beyond the immediate operating area.Parameter detail →Generator2 kWA 2 kW onboard generator supplies the power needed by demanding mission payloads.Parameter detail →Axis control4 axis (x, y, z + rotation)Four-axis control covers movement in space and rotation for precise helicopter manoeuvring.Parameter detail →Max. speed100 km/hA maximum speed of 100 km/h enables rapid movement between operating areas.Parameter detail →Datalink2x datalink (WaveRelay, L+C)Two datalink paths combine WaveRelay and L/C-band communication for mission connectivity.Parameter detail →UAV empty weight145 kgThe empty aircraft weight defines the starting point for fuel, payload and mission configuration.Parameter detail →MTOW200 kgA maximum take-off weight of 200 kg defines the upper limit of the complete flight configuration.Parameter detail →Service ceiling2 000 m AMSLOperation up to 2,000 m AMSL supports deployments in elevated and varied terrain.Parameter detail →Enduranceup to 4 hFlight endurance of up to four hours enables persistent observation and long mission cycles.Parameter detail →
